Product Overview

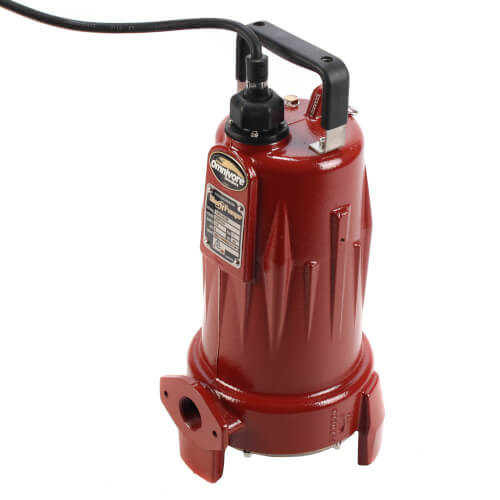

LIBERTY PUMPS LSG202M GRINDER PUMP
Liberty Pumps LSG202M is a 2 HP 208-230V Manual Submersible Grinder Pump with 25ft quick-disconnect power cord. Liberty's Omnivore grinder LSG200-Series pumps meet the demanding needs of commercial and residential sewage applications where difficult solids-handling ability is crucial. Superior cutting system of the Liberty Grinder Pumps LSG202M provides improved shredding performance over radial cutters. V-pattern provides up to 108 alternated cuts per revolution. In addition, Liberty LSG-Series Grinder Pumps are designed for continuous underwater operation. The Liberty LSG202M Grinder Pump features internal capacitors and does not require a separate control panel for operation
Features:
- 2HP, heavy-duty motor - oil filled, thermally protected
- Advanced V-Slice cutting system made of hardened 440 stainless steel - Rockwell C 58
- Internal capacitor
- Upper and lower ball bearings
- One-piece uni-body cast iron housing
- 300 Series SS Rotor Shaft
- 316 Stainless steel impeller
- Dual seals - Upper seal is unitized durable silicon carbide. Lower seal is Viton double-lip. (Lower seal ensures that all debris is kept away from main seal)
- Motor windings insulated to Class B (265°F)
- New Patented V-Slice cutter technology
- Horizontal 1-1/4" FNPT Discharge
- Back vanes on impeller and spiraled bottom plate for superior solids clearing
- All stainless steel fasteners
- Clog-free volute design
- Designed for maximum heat dissipation and cool motor operating temperatures
- Solid state starting circuit - no mechanical relay coil
- 25' power cord with Quick-Disconnect
Specs:
Shutoff Head (ft.): 108'
Cord Length: 25'
Horse Power: 2
Type: Manual
Voltage: 230V, 208V
Discharge: 1-1/4" FNPT
