Product Overview

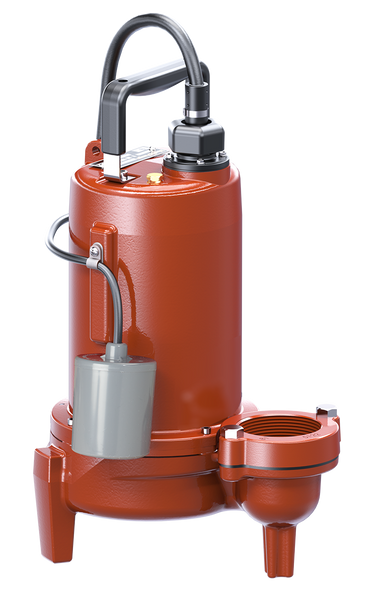

LIBERTY PUMP LE102M2-2 MANUAL SUBMERSIBLE SEWAGE PUMP
The Liberty Pump LE102M2-2 is a manual submersible sewage pump with a 230V, 1 HP motor and 25' quick disconnect power cord. Featuring rugged 2-vane, semi-open impellers, this allows for handling of 2" solids. A separate approved pump control device or panel for this submersible sewage pump is required for automatic operation. In addition, this Liberty sewage pump is constructed of heavy cast iron with a tough epoxy powder coat finish and stainless steel fasteners which ensure years of trouble-free performance
Features:
- Rugged 2 vane, semi-open cast iron impellers
- Cast iron housings and volute with all stainless and brass fasteners
- 416 stainless steel rotor shaft
- Oil-filled, hermetically sealed motors
- Built-in thermal protection on single phase models
- Permanently lubricated upper and lower ball bearings
- Unitized shaft seals
- Single float mechanical level control with series plug for manual bypass operation-standard on single-phase automatic models
- Adjustable pumping range
Specs:
Cord Length: 25'
Shutoff Head (ft): 36'
Type: Manual
Voltage: 230V, 208V
Horse Power: 1
Discharge: 2" FNPT
Flow at 5 FT Head: 177 GPM
